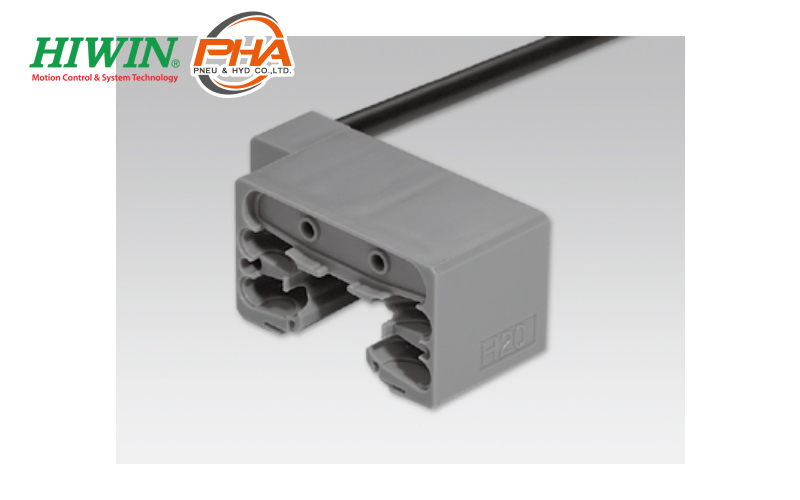

Hiwin Positioning Measurement - H Type
ไฮวิน Positioning Measurement - H Type
- Analog signal output / Avaliable gap up to 4 mm
- Compact design used with Hiwin kinear guideways
- Optimal for space-saving applications. Easy installation
- Resolution is up to 5 µm while integrating with ST-A / Repeatability up to ±10 µm
Hiwin Positioning Measurement - H Type

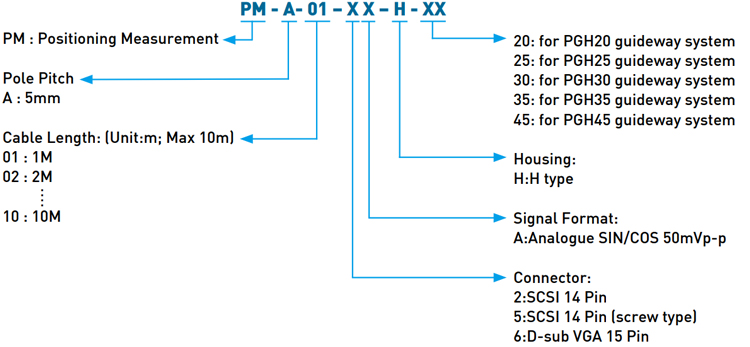

ตัวอย่างการเลือกรุ่น (Code) | Positioning Measurement H Type
รายละเอียดทางเทคนิค (Specifications) Hiwin Positioning Measurement - H Type
| Pole pitch | 5mm |
|---|
| Available gap(1) |
4mm |
| Signal format |
Analogue |
| Output signal |
SIN/COS 50mVp-p |
| Resolution |
5mm |
| Repeatability(2) |
±10µm |
| Maximum travel speed |
10m/sec |
| Input voltage |
5VDC±5% |
| Operating temperature |
0 ~ 50 °C |
| Strorage temperature |
-5 ~ 50 °C |
| Protectopm class |
IP67 |
- Note
- Please refer Chap 6.5 for Gap-Repeatability relationship.
- The data were measured while gap is 1mm.
