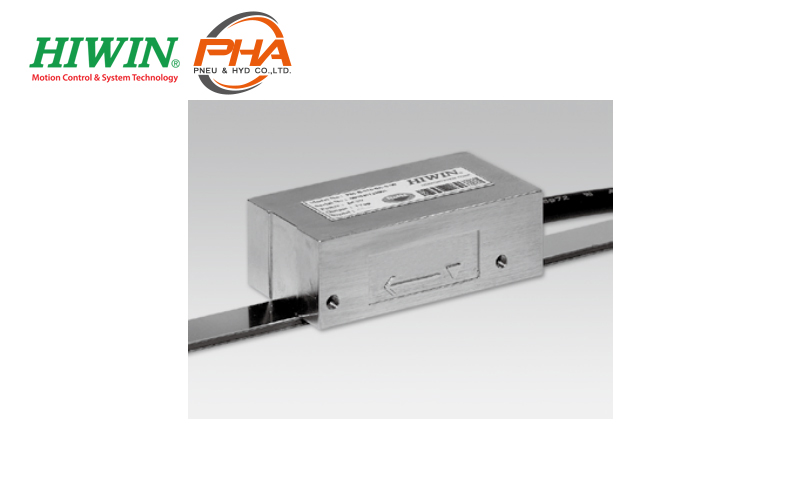

Hiwin Positioning Measurement - Standard Type
ไฮวิน Positioning Measurement - Standard Type
- Didital or analog signal output availble / Avaliable gap up to 0.4 mm
- Simple design and easy-mounting / Water proof and dustproof
- Same installation holes as other as other optical encoder, easy to switch and replace
- Optional metal protection tube
- Resolution up to 1 µm / Repeatability up to ±2 µm
Hiwin Positioning Measurement - Standard Type

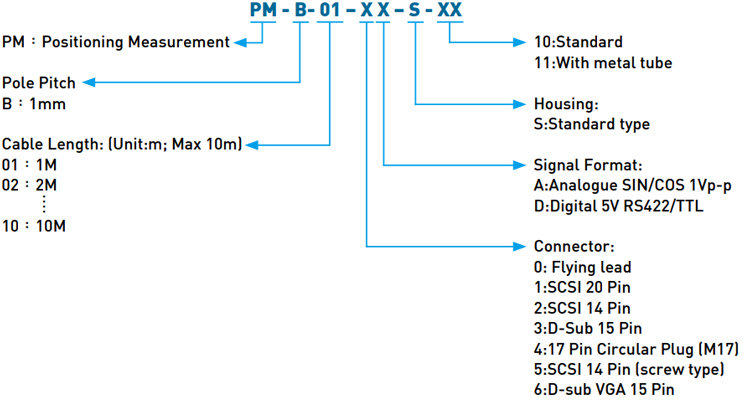

ตัวอย่างการเลือกรุ่น (Code) Positioning Measurement Standard Type
รายละเอียดทางเทคนิค (Specifications) Hiwin Positioning Measurement - Standard Type
| Pole pitch | 1mm |
|---|
| Available gap(1) |
0.4mm |
| Signal format |
Analogue |
Digital |
| Output signal |
SIN/COS 1Vp-p |
5V TTL/RS422 |
| Resolution |
1mm |
1µm |
| Repeatability(2) |
±3µm |
±2µm |
| Reference signal |
1 mm/pulse |
| Maximum travel speed |
10 m/sec |
5 m/sec |
| Input voltage |
5VDC±5% |
| Operating temperature |
0 ~ 50 °C |
| Storage temperature |
-5 ~ 70 °C |
| Protectopm class |
IP67 |
- Note
- Please refer Chap 3.7 for Gap-Repeatability relationship.
- The data were measured while gap is 0.1 mm.

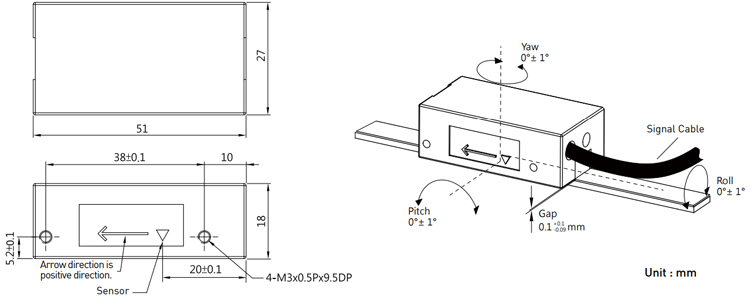

ขนาด (Dimensions) Hiwin Positioning Measurement - Standard Type
