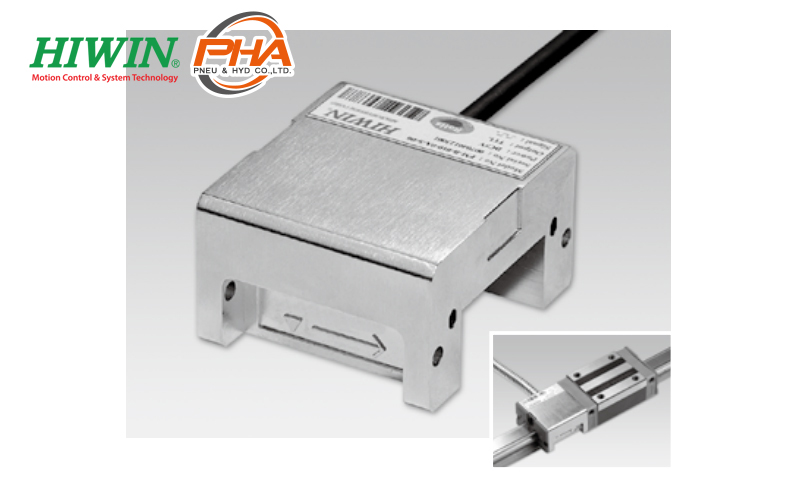

Hiwin Positioning Measurement - PG Type

ไฮวิน Positioning Measurement - PG Type

• Didital or analog signal output availble / Avaliable gap up to 0.4 mm.
• Compact design and compatible with HIWIN linear guideways
• Cost-effective and reliable
• Optimal solution for automation quipment that requires precise feed back
• Resolution up to 1 µm / Repeatability up to ±2 µm

PDF : Hiwin Positioning Measurement - PG Type

---

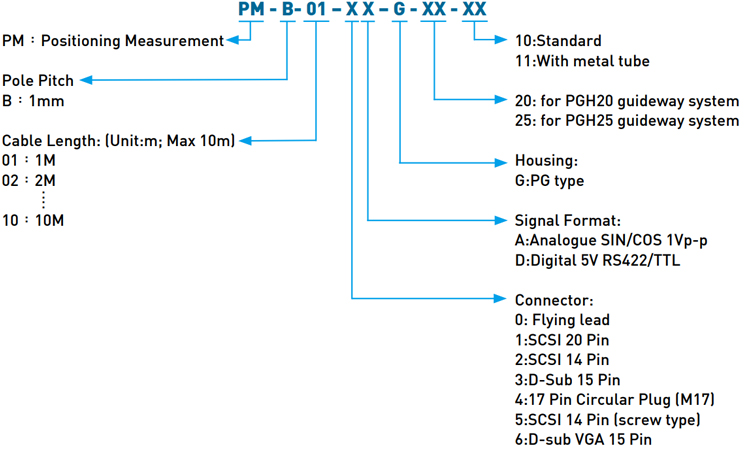

Pole pitch	1mm
Available gap(1)	0.4mm
Signal format	Analogue	Digital
Output signal	SIN/COS 1Vp-p	5V TTL/RS422
Resolution	1mm	1µm
Repeatability(2)	±3µm	±2µm
Reference signal	1 mm/pulse
Maximum travel speed	10 m/sec	5 m/sec
Input voltage	5VDC±5%
Operating temperature	0 ~ 50 °C
Storage temperature	-5 ~ 70 °C
Protectopm class	IP67

• Note
  1. Please refer Chap 4.7 for Gap-Repeatability relationship.
  2. The data were measured while gap is 0.1 mm.

---
